Parameters:

Type:Mini Trackers

Size:4*2.5*1.5cm/1.57*0.98*0.59"

Material:ABS

Talking time:150-180minutes

Standby time:12 days

Working time:4-6 days

Expansion card:Mini TF Card (Not include)

Network:GSM / GPRS

GSM band:850/900/1800/1900 MHz

GMS positioning time:25 seconds

Power:5V 300-500mA

Battery capacity:3.7V 400 Ma lithium ion battery

Working voltage:3.4-4.2 V

Storage temperature:-40 to 85 ℃

Operating temperature: -20 to 55 ℃

Humidity: 5%-95% without condensation.

Feature:

1.Support Internet Network data transmission;

2.Supports remote operation of phone. Function: recording, Sound monitoring, track, machine state, restart, etc;

3.Support and LBS (location based service) double tracking system, improve the accuracy of position;

4.Super magnetic power. Build-in 2 pcs strong magnet, you can put it on the metal plate and absorb it automatically;

5.Multiple functions of security, tracking, monitoring surveillance, alarm systems and management as a whole;

6.Handheld and vehicle target. Used extensively for vehicle, person and other moving objects;

Package List: 1 * Mini Trackers;1 * USB Cable line. 1 * Using manual

Notes:

1.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

2.Please allow 1-3cm measuring deviation due to manual measurement.

Method of use:

1. Preparation: a phone card and mini memory card,

2. Boot: open the card cover according to the directions insert card, mini memory card is inserted in, products will be automatically switched on the red light shine out 1 times, 30 seconds to enter standby state.

3. The indicator light: light is normally on 1 boot, low battery indicator light flash

4, binding number; Using a phone text 000 sent to alarm the locator number, later the machine reply to phone a message; The set; Binding + number

5. Separate recordings; Using a phone text 555 sent to alarm the locator number, later the machine reply to phone a message; 【 Snd; recording started 】

6. The voice control callback; Using a phone text 666 sent to alarm the locator number, later the machine reply to phone a message; 【 DT; has been successfully set sound monitor, alarm callback 】,.

When the sound of the alarm locator around more than 40 db, alarm locator will automatically call set phone number in advance.

7. location query: edit phone text messages sent to alarm the locator number 777, later reply phone a native Chinese geographical location and maps link, location map will be shown after the phone to open the links and text address, make a more accurate location.

Around

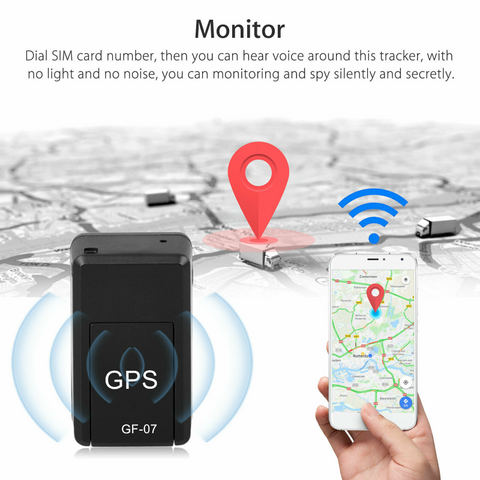

8. Product voice query: direct dialing alarm locator card number, after a few seconds to can hear the sound of the alarm locator around (in the query will not make any sound and light alarm locator itself)

11. The state of the host; Using a phone text 888 sent to alarm the locator number, later the machine reply to phone a message; 【 host all the features on or off battery capacity binding number, signal strength, frequency startup, TF card capacity etc.).

12. Restart the host; Using a phone text 999 sent to alarm the locator number, such as 1 minute recovery success.

13. Shut down, the information above are remaining power according to stop function; Use their phones to edit text messages sent to alarm the locator number 444, a native reply laterand "Reset; all tasks have been cancelled"

14. Electricity query: located in every time you reply

Supported countries: Britain Netherlands Brazil, Portugal, Denmark Russia Turkey Hungary Thailand Indonesia Malaysia Vietnam myanmar Pakistan, Iraq, Saudi Arabia, Greece the kazakhstan Mongolia dubai, etc...

CZ597A (14) CZ597A (16) CZ597A (19) CZ597A (20) CZ597A (21) CZ597A (23) CZ597A

CZ597A (4) CZ597A (5) CZ597A (7) CZ597A (10) CZ597A (14)

GF07 Magnetic Mini Car Real-time Locator
